Mercedes Code P06DA00: The Oil Pump Valve Fault That's Usually a Wiring Problem

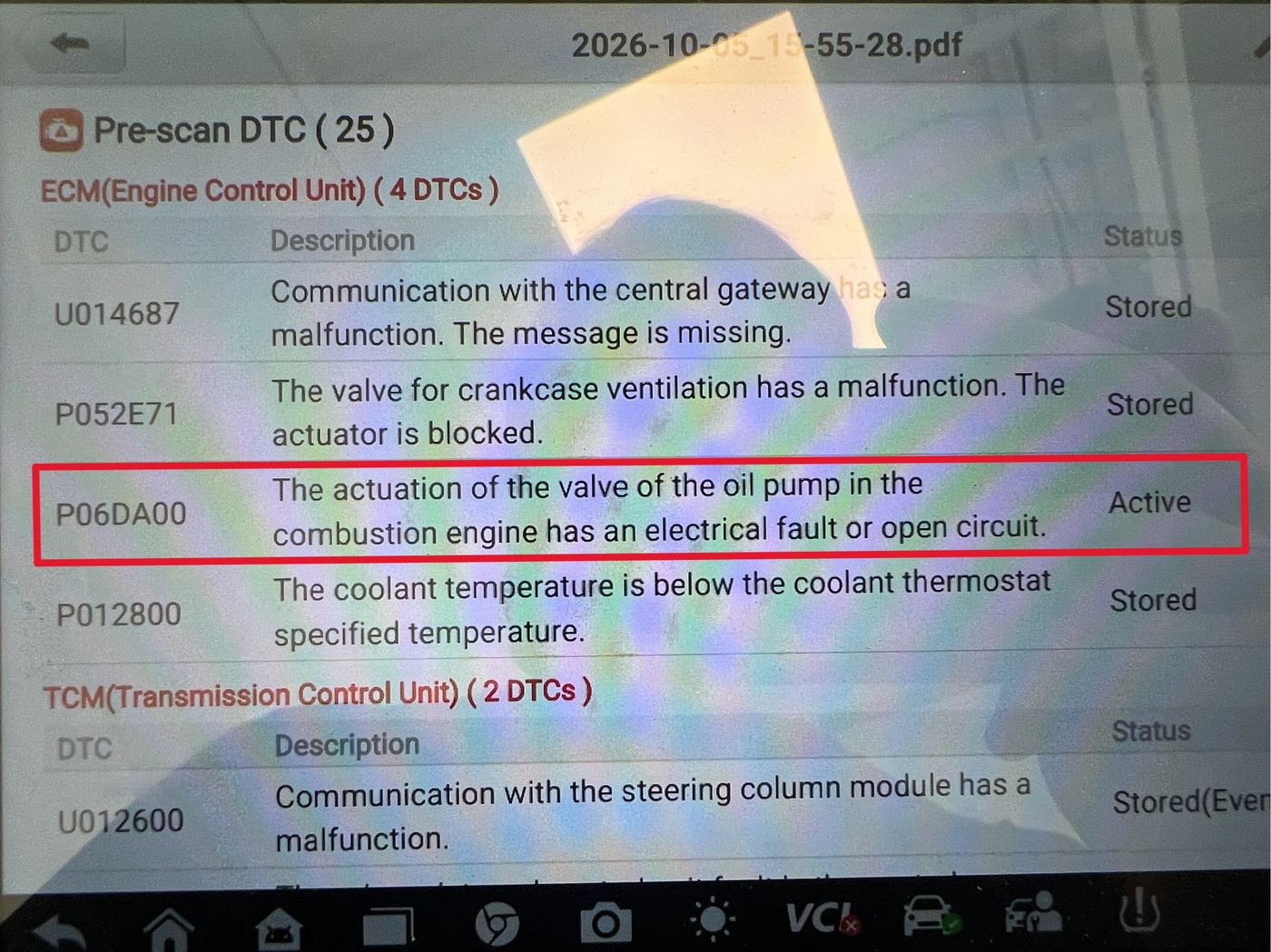

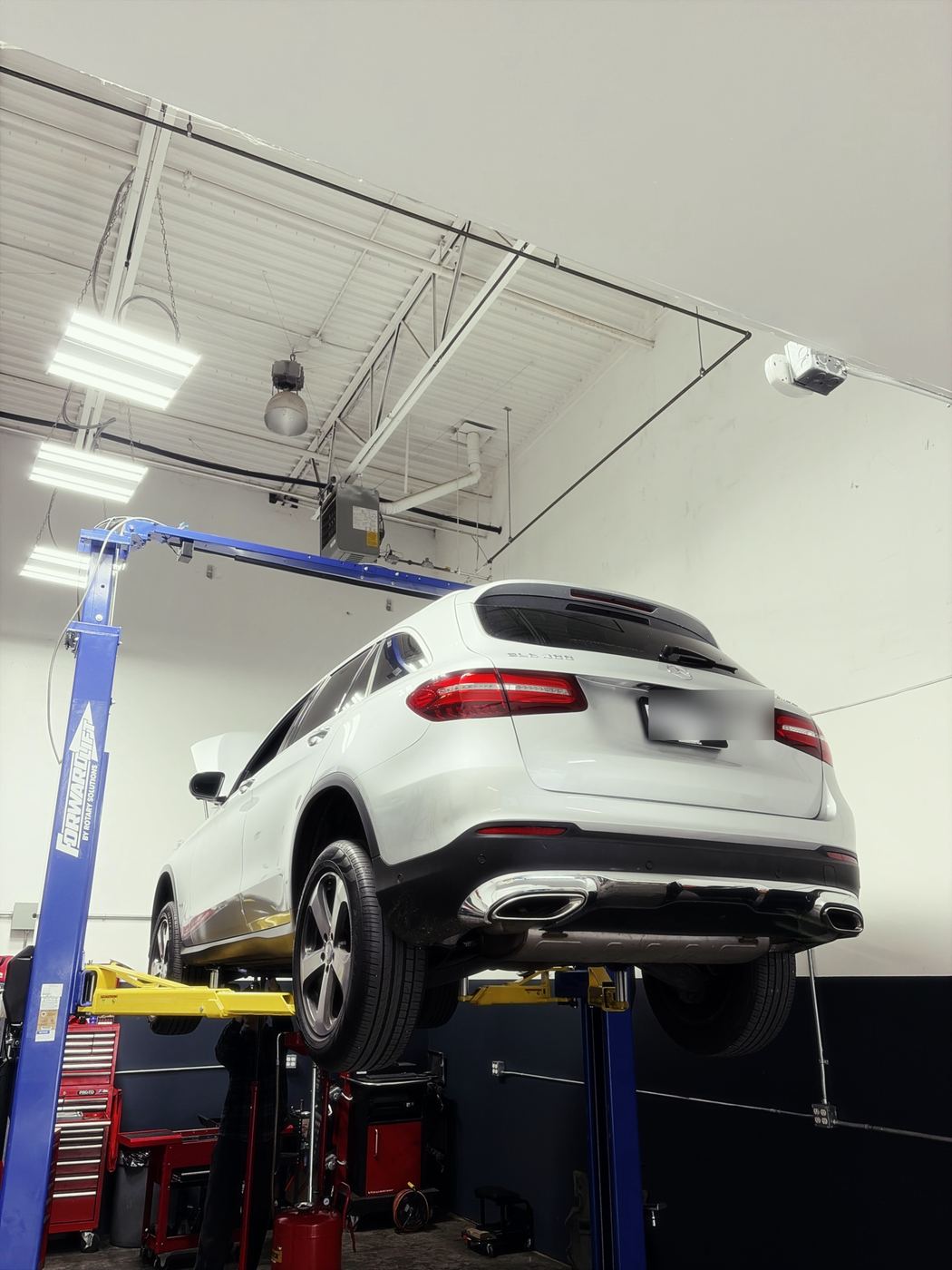

A Mercedes GLC300 came in recently with the check engine light on and a pre-scan that flagged code P06DA00 as active: "The actuation of the valve of the oil pump in the combustion engine has an electrical fault or open circuit." It's a common code on Mercedes' 2.0L turbo four-cylinder engines, and it gets misdiagnosed more often than it should — because the part everyone suspects first usually isn't the part that's actually failed.

What P06DA00 actually means

This code points to Y130, the variable oil pump control valve — a solenoid that lives inside the oil pan and tells the engine's variable-displacement oil pump when to switch between low and high output, depending on load and RPM. P06DA00 specifically means the engine control module is seeing high resistance or an open circuit in that valve's electrical circuit — not necessarily that the valve itself has failed mechanically. It's an electrical fault code, and that distinction matters for how it gets fixed.

Which engines and models this affects

This is an M274 engine issue — Mercedes' 2.0L turbocharged four-cylinder used across a wide range of models from roughly 2015 onward, including the C300, C400, E300, GLC300, and related models that share the same engine family, like the CLA250 and GLA250. If you own one of these and you're dealing with a check engine light, P06DA00 is common enough to be one of the first things worth checking.

Why the wiring harness is usually the real culprit

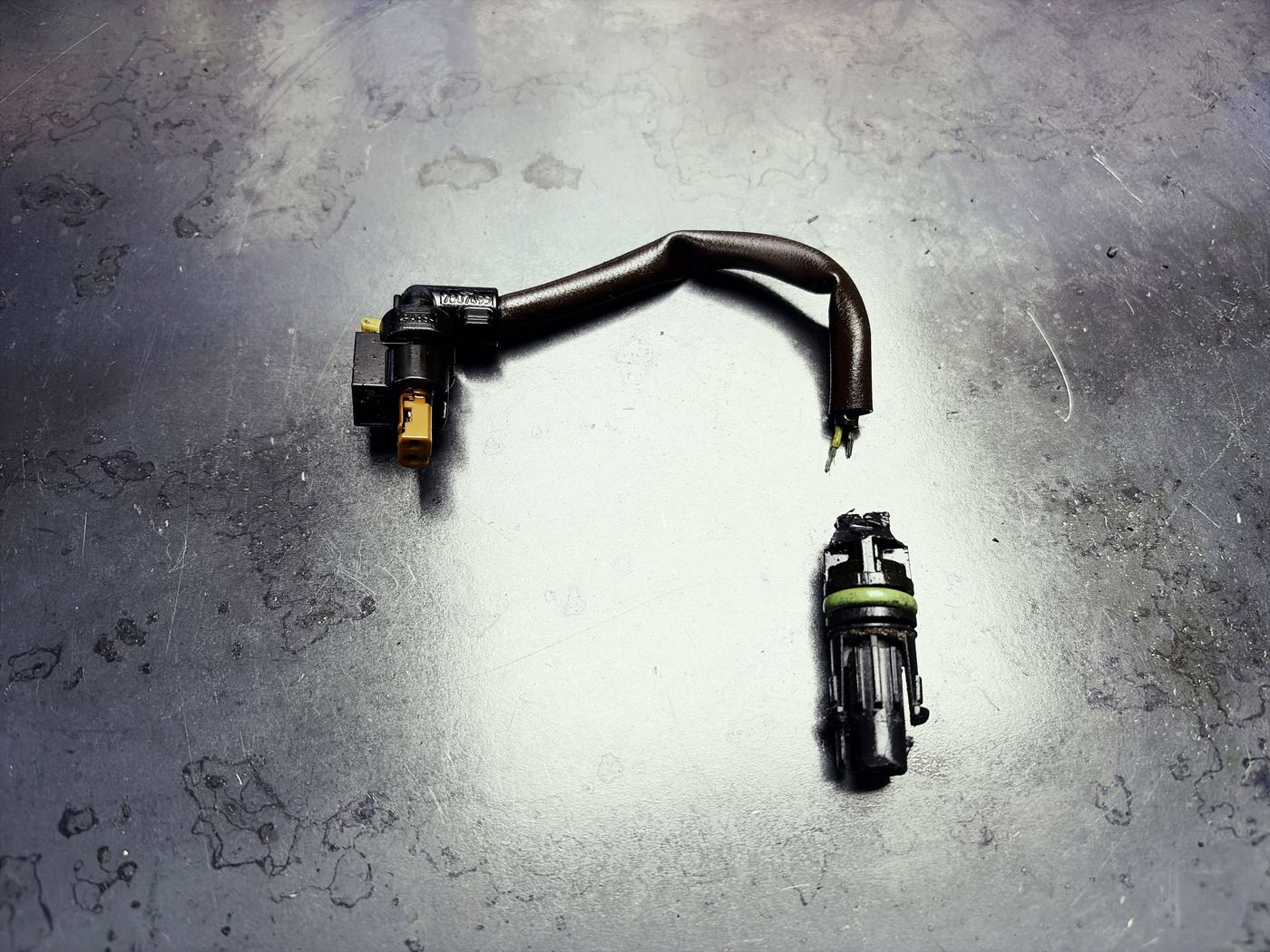

Here's where a lot of diagnoses go sideways: the Y130 valve itself gets blamed first, because it's the component the fault code names. But in our experience — and this lines up with what independent shops report broadly — the valve itself is frequently fine. The actual failure point is the short section of wiring harness and connector that runs from the valve, inside the oil pan, out to the rest of the engine harness. That wiring sits in a hot, oil-soaked environment for years, and the insulation and connector pins degrade: the insulation chafes or breaks down, and the connector pins corrode or build up resistance. Electrically, that looks identical to a bad valve — high resistance or an open circuit — which is exactly what P06DA00 is designed to catch.

That's why a proper diagnosis on this code means testing the circuit itself — resistance checks at the connector, not just swapping the solenoid and hoping. Replacing a $60-$150 solenoid when the harness pigtail is the actual problem means the code comes right back, and the customer pays for the same repair twice.

This is also why the Y130 valve and the harness pigtail should be replaced together as a pair, not one without the other. The two parts sit right next to each other inside the pan and both get exposed during the exact same repair, so there's no real downside to doing them together — and since the oil pan already has to come down to reach either part, the labor is the same either way. Replacing both at once is simply good, standard practice for this job, not an upsell.

What this fault actually does to your engine

This is the part that tends to worry owners more than it should. The variable oil pump's whole job is to switch between a lower-output mode (for efficiency) and a higher-output mode (for load and RPM) depending on what the engine control module commands through that same Y130 valve. When the valve's circuit faults out, the pump typically can't be commanded into its variable low-pressure mode anymore and defaults toward full output instead. In practical terms, that generally means the engine keeps making adequate oil pressure — it's not an oil-starvation event — but you lose the efficiency benefit the variable pump was designed for, and the fault trips the check engine light. It's an electrical and emissions-related fault more than a mechanical threat to the engine itself, which is part of why some manufacturer guidance even allows it to be monitored rather than repaired immediately on certain earlier model years, as long as no driveability symptoms show up. That said, "not an emergency" isn't the same as "ignore it indefinitely" — any active fault is worth having actually diagnosed, so you know which case you're in.

What the repair involves, and what it costs

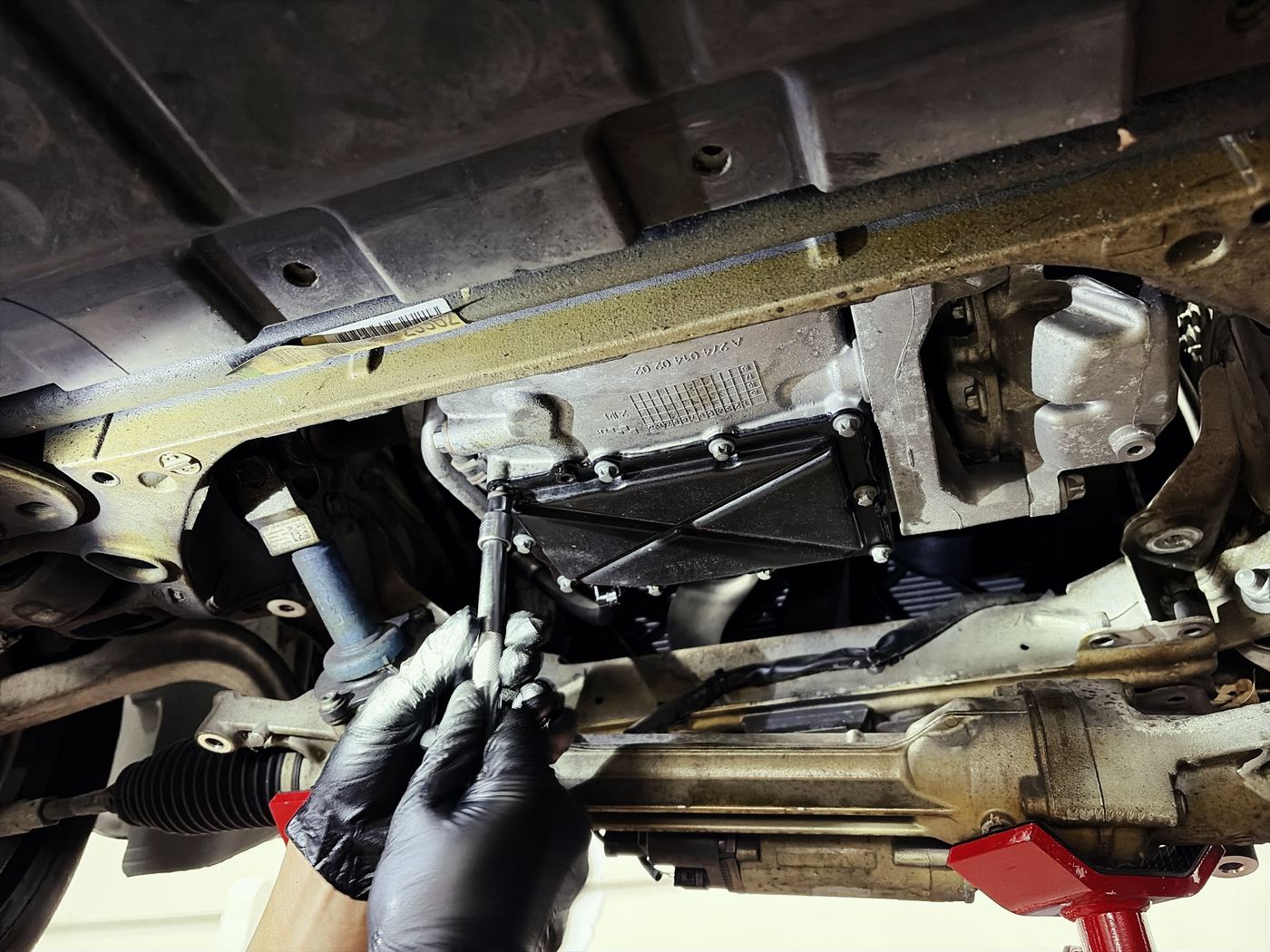

Because the Y130 valve and its harness connector sit inside the oil pan, there's no way around dropping the pan to get at it. The job typically involves:

• Dropping the oil pan (on all-wheel-drive 4MATIC models, this usually means lowering the front subframe and driveshaft for clearance)
• Replacing the Y130 valve and its harness pigtail/connector together as a matched pair — not just the valve on its own, and not just the harness on its own
• A new oil pan gasket
• Refilling with the correct spec oil and clearing the stored codes

Parts-wise, this isn't an expensive repair — the valve and harness repair section are inexpensive components. Nearly all of the cost here is labor, driven by how much has to come apart to reach the pan, not the parts themselves. At an independent shop, we'd generally put this job in the neighborhood of $1,500 all-in, somewhat less on non-4MATIC cars where the subframe doesn't need to come down, and more at a dealer given their labor rates. Since that labor is the same whether one part is replaced or both, pricing the valve and harness pigtail together as a pair adds very little to the job.

Not a reason to avoid these cars

If you're shopping for a C300, E300, or GLC300 and you've read about this issue, it's reasonable to be cautious — but it's not a reason to walk away. This is a known, well-understood, electrical wear item on an otherwise solid engine platform, not a sign of a deeper design flaw or a precursor to bigger engine damage. It's a predictable repair with a known fix and a cost that, in the context of a European luxury vehicle, is genuinely reasonable — especially compared to the kind of engine-internal repairs this fault gets confused with when it's misdiagnosed. A pre-purchase inspection will catch an active code like this before you buy, and if it shows up after the fact, it's a straightforward, one-time fix rather than an ongoing problem.

Frequently Asked Questions

What does Mercedes code P06DA00 mean?

P06DA00 means the engine control module detected high resistance or an open circuit in the Y130 variable oil pump control valve circuit. It's an electrical fault code, not necessarily proof the valve itself is mechanically broken.

What usually causes P06DA00 on a Mercedes?

In most cases it isn't the Y130 valve itself — it's the short section of wiring harness and connector inside the oil pan. Years of heat and oil exposure degrade the insulation and corrode the connector pins, which electrically looks identical to a failed valve. Since the valve and its harness pigtail sit right next to each other and are both exposed during the same repair, it's good practice to replace them together as a pair rather than one on its own.

Which Mercedes models and engines are affected by P06DA00?

This affects Mercedes' M274 2.0L turbocharged four-cylinder engine, used in the C300, C400, E300, and GLC300, along with related models that share the same engine family like the CLA250 and GLA250.

Is P06DA00 safe to drive with?

Generally yes, in the short term. When the Y130 valve's circuit faults, the variable oil pump typically defaults to full output rather than losing oil pressure, so it's usually an electrical and efficiency issue rather than an oil-starvation risk. It should still be diagnosed properly rather than ignored indefinitely.

How much does it cost to fix P06DA00?

At an independent shop like ours, this repair typically runs around $1,500 CAD all-in, since the oil pan has to come off to reach the valve and harness connector. Non-4MATIC cars tend to cost less since the subframe doesn't need to come down, and dealer pricing runs higher.

Is P06DA00 a reason not to buy a car with this engine?

No. It's a known, well-understood electrical wear item on an otherwise solid engine platform, not a sign of a deeper design flaw. It's a predictable, one-time repair rather than a recurring problem.
